Plywood Hot Press Machine

Short cycle press and hydraulic equipment manufacturer

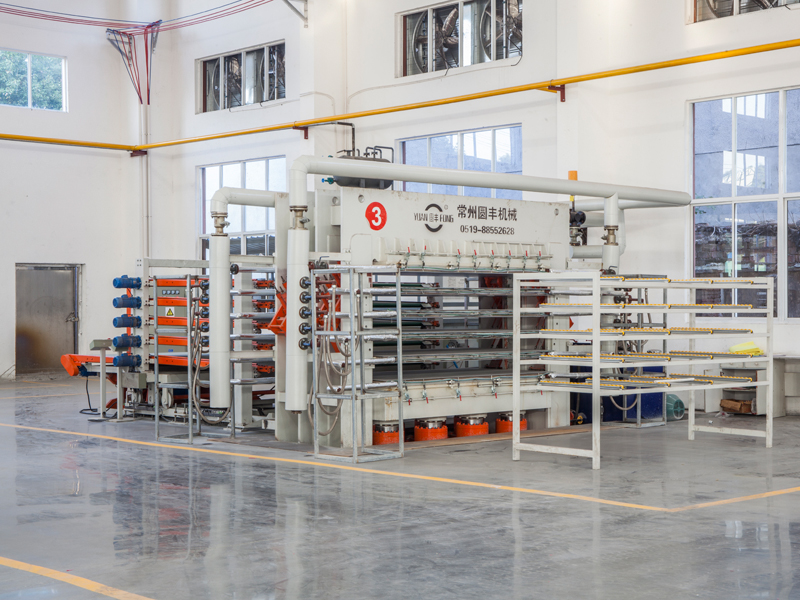

Film Faced Plywood Hot Press Machine

The multi-layer veneer press is mainly used for the veneer production of blockboard, ecological board and multi-layer plywood, and can press high-gloss melamine board surface.
It is also used for pressing and pasting various decorative materials on the surface of plywood, blockboard MDF and particleboard, and can also be used for drying and shaping of plywood and boards.
press which is mainly used for laminating melamine decorative paper or phenolic film or veneer on plywood surface to make different designs laminated plywood such as mirror, snow or wood grain.

Plywood Hot Press Machine Parameters

Model Total pressure of the width(KN) Diamter of plunger cylinder(mm) Num of plunger cylinder(pc) Width Size Num of layers
YXD-150 1500 φ140 4

Depebds on customers


YXD-200 2000 φ160 4
YXD-300 3000 φ200 4
YXD-600 6000 φ200 8
YXD-800 8000 φ220 8
YXD-1000 10000 φ250 8


Characteristic of Plywood Hot Press Machine

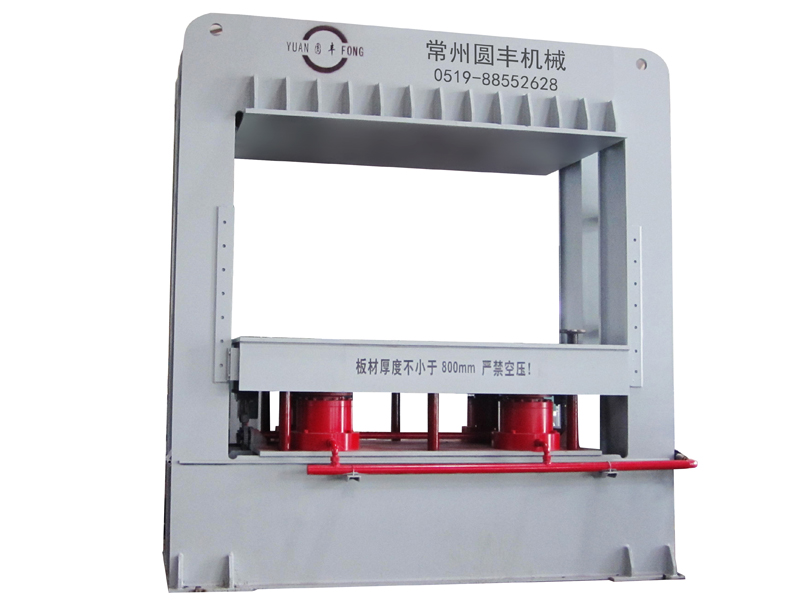

1. Frame structure
- The frame is thick and made of high-resistance steel.
- The steel plate is a high hardness solid steel.
- Configure guide posts to ensure better flatness during pressing.
2. Oil cylinder
- Cylinders are made of special thick steel seamless tubes.
- Welding is done by robotic machines to control all welding parameters.
- CNC machining ensures tight minimum tolerances in operation to extend the life of the cylinder.
3. During the pressing process, the pressure speed is adjusted electronically.
4. Pressure control device.
- Control the electronics with a microprocessor.
- The pressing parameters are automatically set by the press button.
5. Digital instrument for separate electronic control of platen temperature.
6. Digital pressure gauge to control the pressure level.
7. Two-channel pressure and temperature graph recorder with sensor and probe.

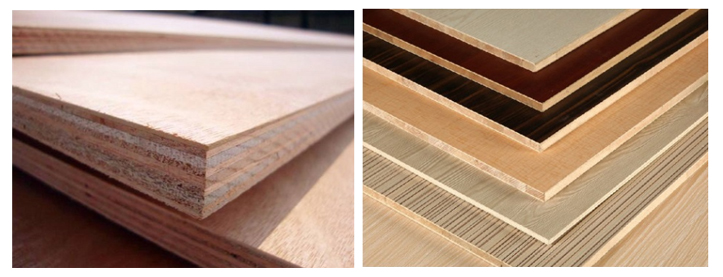

Applications of plywood board

Plywood is one of the commonly used materials for furniture,
one of the three major panels of wood-based panels, and can also be used for aircraft, ships, trains, automobiles, buildings and
packaging boxes.
A set of veneers is usually glued together vertically to each other in the direction of adjacent layers of wood grain, and its
surface plate and inner plate are usually symmetrically arranged on both sides of the central
The slabs made of glued veneer crisscrossed in the direction of the wood grain are pressed under heated or unheated conditions.
The number of layers is generally odd, and a few are even.arranged on both sides of the central layer or core.


Intelligent Technology

The products with high technology,high performance,high quality is our technical principle,which can be visualized in whole manufacturing process,routine test and delivery inspection as well as in the control of raw material purchase and stable accessories selection.

Other Commodities Related To Plywood Hot Press Machine

Why choose YUANFONG as your supplier?


1.Professional design

Our engineers team will draw the layout according to customer’s factory space and production requirements. Each equipment location,passage will be designed reasonably to meet  safety production.

2.Advanced equipment

YUANFONG has specialized in wood processing,building material,decoration and other industries, for more than decade years. All the devices are produced with great care to make sure perfectly running in customer’s factory.

3.Humanized after-service

YUANFONG provides quality guarantee,all the faulty parts will be recalled without any cost. Professional    engineers will be sent to customer’s factory to help stall the production line until it runs well. Provide technical support within 1 hour to ensure that customers can solve problems in short time.
