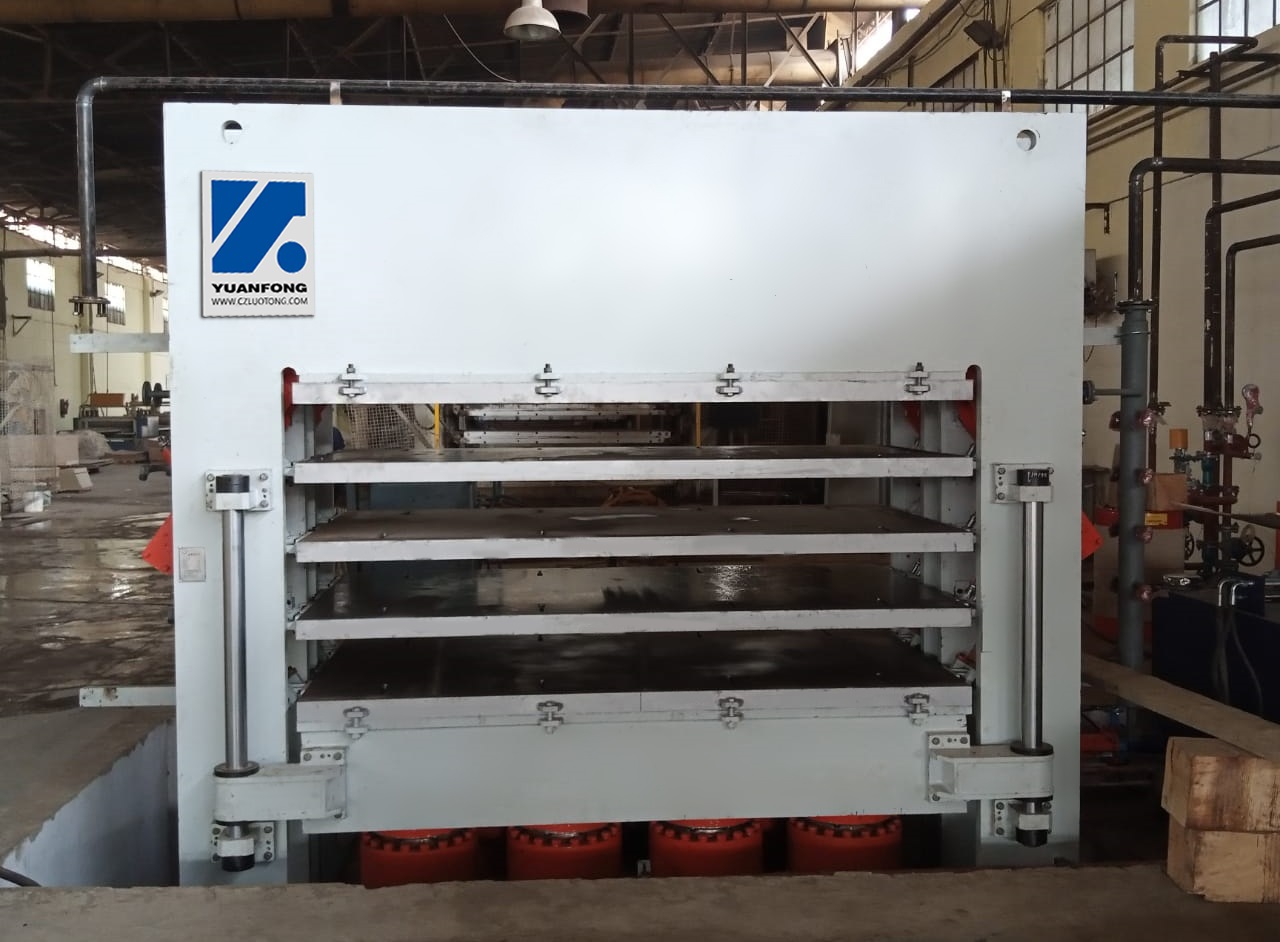

Door Skin Hot Press Machine

Short cycle press and hydraulic equipment manufacturer

Door Skin Press Machine Overview

The multi-layer molded door press is mainly used for the pressing 3D modeling of the softened MDF or HDF, which can press doors, windows, etc.

Door Skin Press Machine Parameters

Model Total Pressure of the width(KN) Diameter of plunger cylinder(mm) Number of plunger cylinder(pcs) Width size Number of layers Distance between layers(mm)
YXD-900 9000 Φ250 8 4*8,3*7
depends on customers
1-4 250
YXD-1200 12000 Φ280 8 4*8,3*7
depends on customers
1-4 250
YXD-1600 16000 Φ320 8 4*8,3*7
depends on customers
1-4 250

Product Application



Features of Door Skin Hot Press

1. Frame structure
- The frame is thick and made of high-resistance steel
- The steel plate is a high hardness solid steel
- Configure guide posts to ensure better flatness during pressing.
2. Oil cylinder
- Cylinders are made of special thick steel seamless tubes.
- Welding is done by robotic machines to control all welding parameters.
- CNC machining ensures tight minimum tolerances in operation to extend the life of the cylinder.
During the pressing process, the pressure speed is adjusted electronically.
4. Pressure control device
- Control the electronics with a microprocessor.
- The pressing parameters are automatically set by the press button.
Digital instrument for separate electronic control of platen temperature.
Digital pressure gauge to control the pressure level.
Two-channel pressure and temperature graph recorder with sensor and probe.

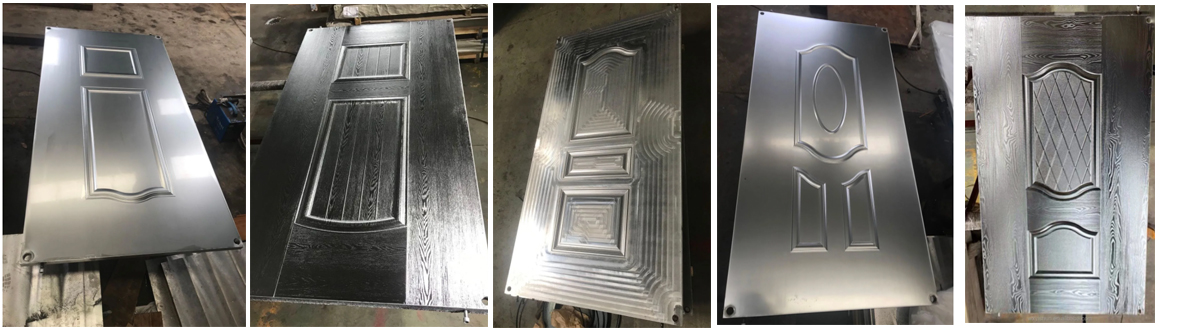

Stainless Steel Door Skin Moulds

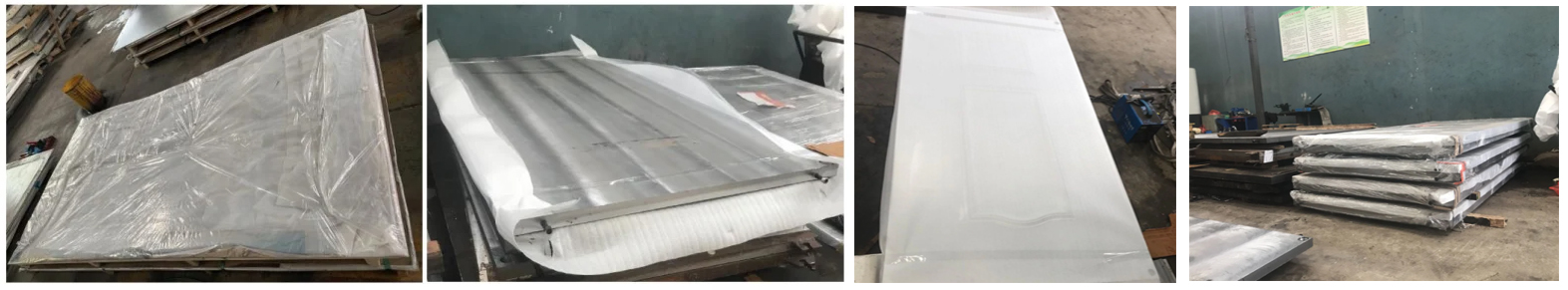

Packing & Shipping

1.Using bubble film, the cushion is spread on the Moban, and the corners are protected by film and bubble film
2.One door mold and one wooden shelf packaging
3.Using bubble film, the cushion is spread on the Moban, and the corners are protected by film and bubble film
One door mold and one wooden shelf packaging



Our Service



●Provide the information in time at customer requirement and make reasonable proposals and budgeting for whole flooring production line.
●Give technical support for the customer's renovation of old facilities for free.
●Provide one-stop service and support to the customer's other equipment.

●Provide raw material related consultation.


●On-site planning for the customers by professional engineer.

●Valuable advice and recommendations on the purchasing of other auxiliary accessories and raw material.

●Free training for operators.


●For all sold products ,free replacement of quality problems within the warranty period,provide lifetime keep-up and maintenance service.

●All-around keep-up,transportation and transformation of equipment.

●Provide production and technical advisory service.

●Provide on-site installation, debugging , training and remote guidance services.


Why Choose YUANFONG as your supplier?





  1. Rich experience and professional design

    We have 15 years experience in short cycle hot press line industry,also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet  safety production.


  2. Competitive price

    YUANFONG has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,our suppliers provide high-quality cost-effective accessories.


  3. Timely after-sale service

    We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer questions within 8 hours.


  4. One-stop solution

    YUANFONG provide one-stop service, including market analysis and professional technical consultation,whole SPC  flooring production line, raw materials ,equipment installation, personnel training,Professional after-sales service team,Renovation of old equipment,make turnkey projects.


  5. Quality control

    Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.


  6. Customized

    YUANFONG's engineer team will design the layout according to customer’s factory space and production requirements.
